CF 02Automatic loader

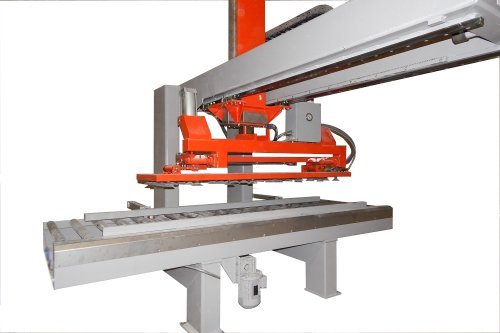

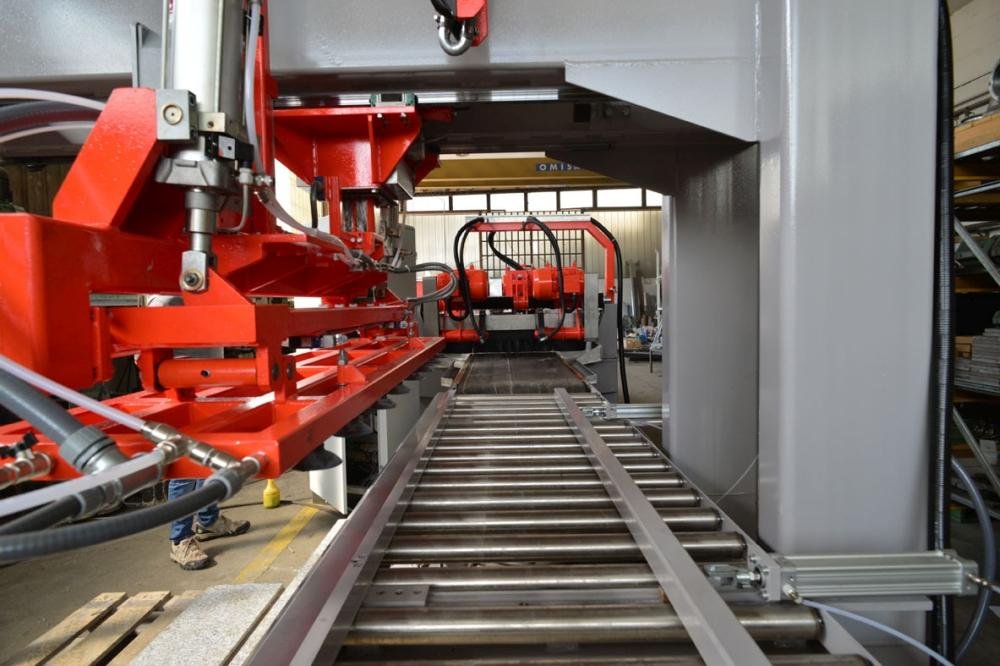

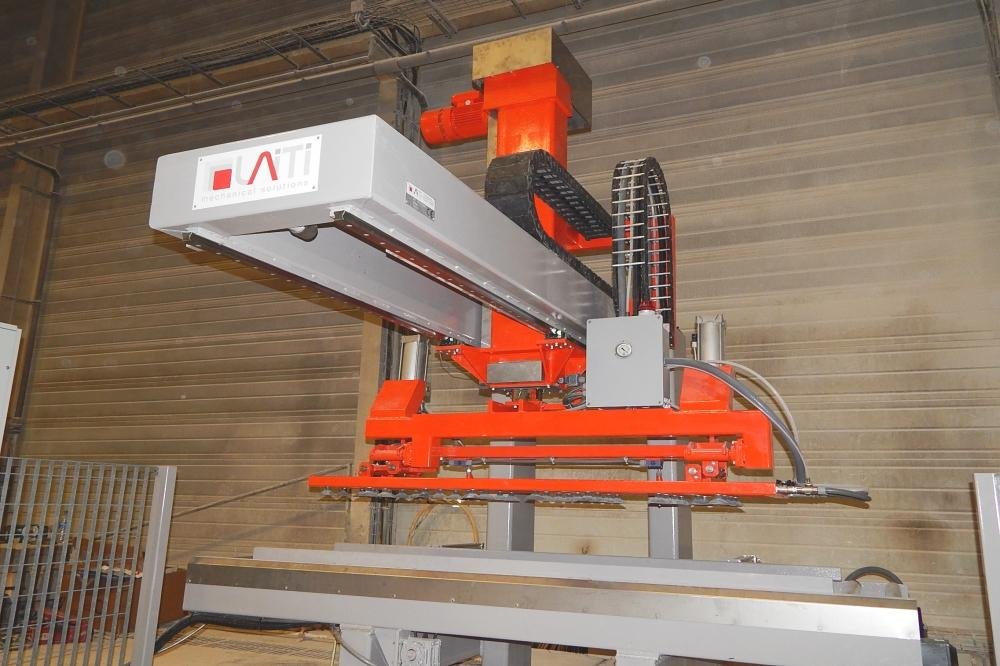

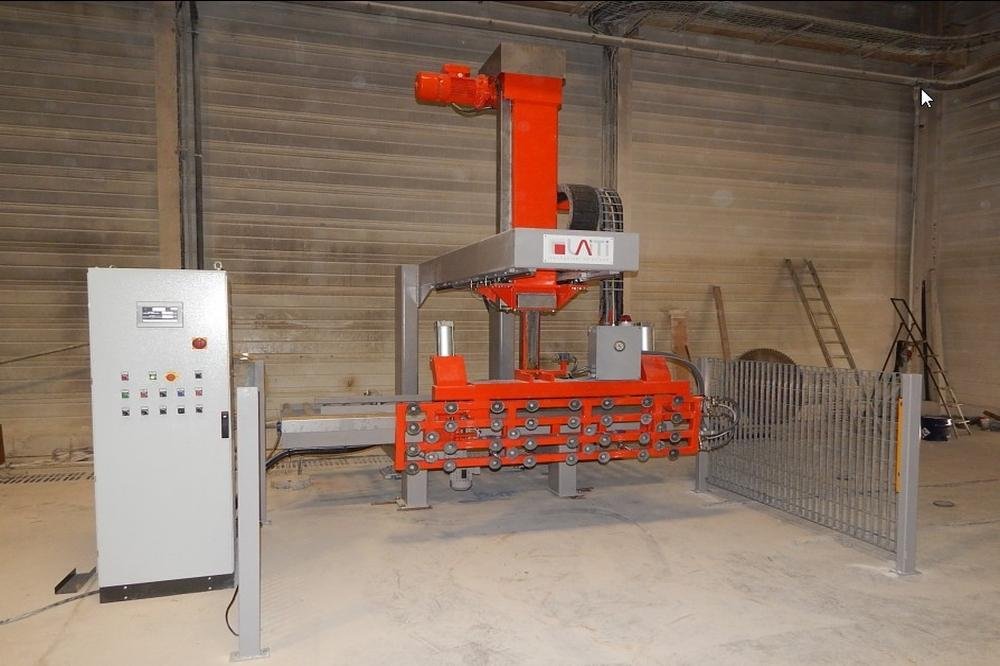

Automatic loader with extremely rigid structure for processing lines, designed for the handling of large strips with a height of up to 1000 mm and weight even over 400 Kg.
Advancement on linear guides for maximum precision in positioning and extremely fast linear movements.
Lifting and lowering is operated by a large triple chain with safety systems.
Equipped with double pneumatic cylinder for rotation of the material.

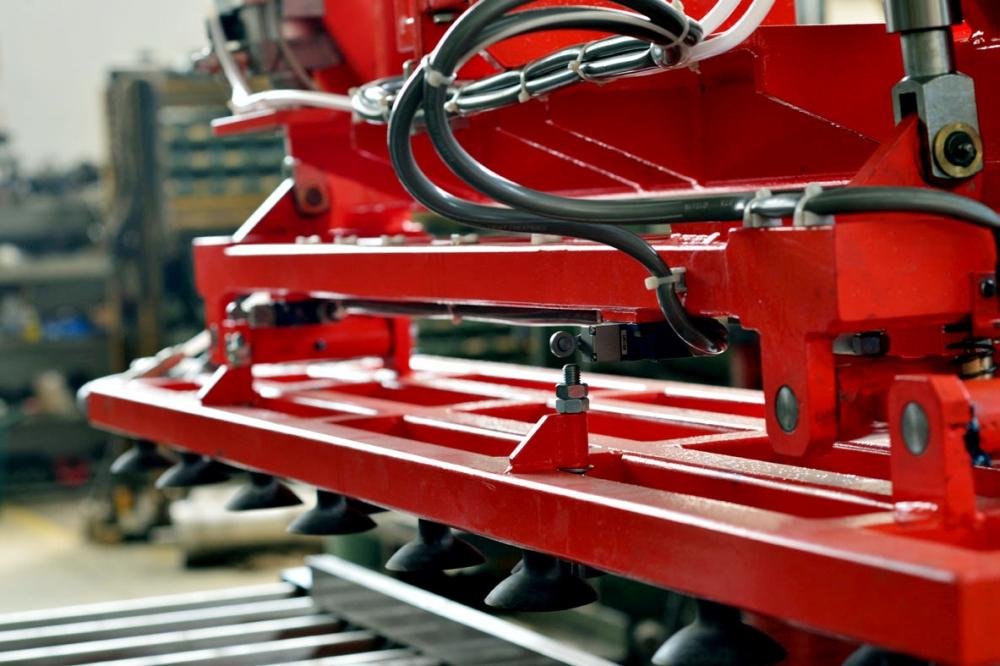

System of asymmetric lifting of the sucker panel to avoid strips sticking together.
A safety system ensures that the vacuum is maintained in case of temporary absence of electricity.
| UNLOADER/ LOADER | Mod. CF 02 |
| Load capacity | Kg 400 |
| Forward/backward speed axis y | m/min 10 |
| Up/down speed axis z | m/min 6 |
| Weight of the machine | Kg 1800 |
