IS 600Rectilinear advancement on recirculating guides

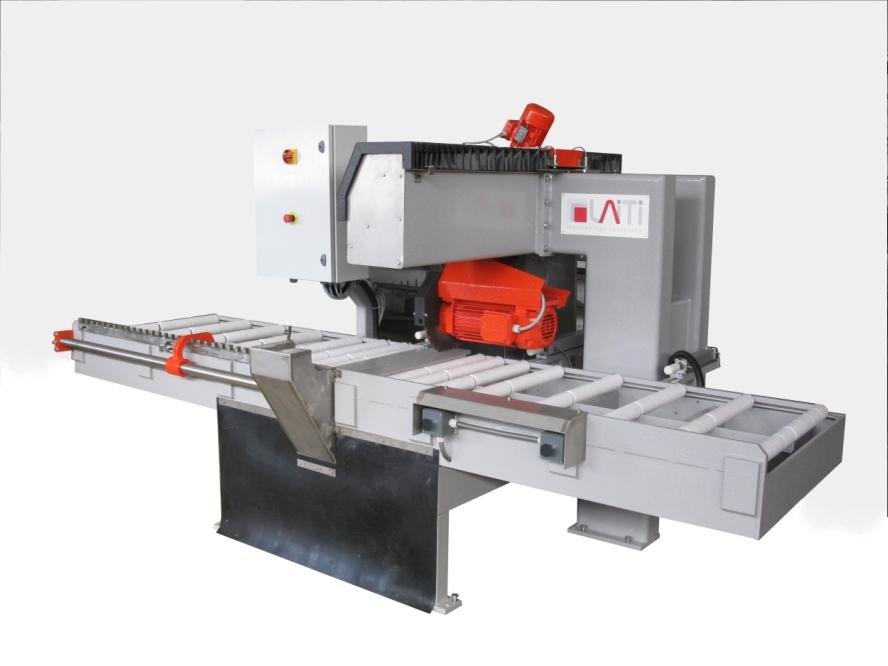

Machine designed for precision cuts even with elevated thicknesses.
Our cross-cutter is extremely robust and uses the highest quality components.

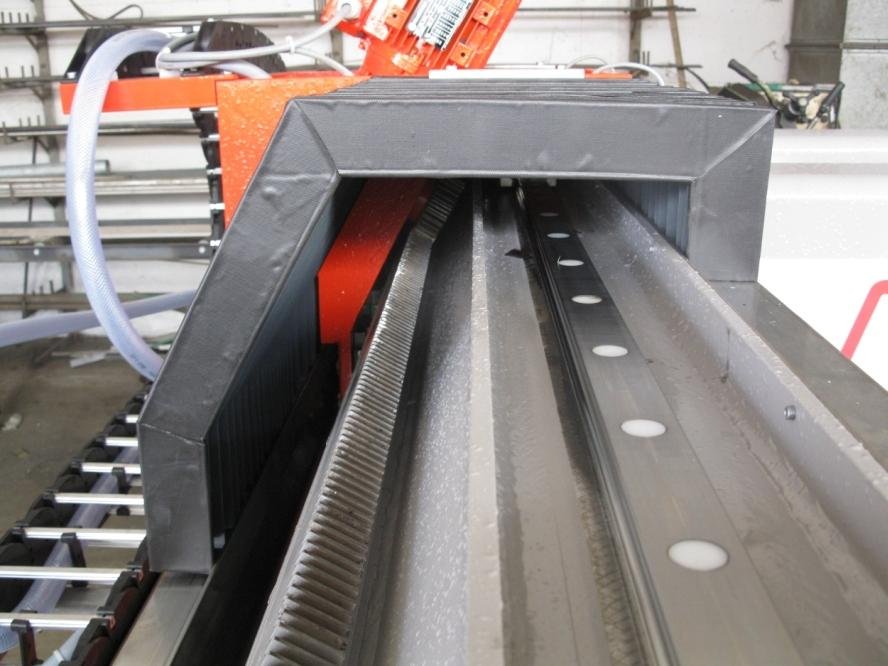

The disc trolley moves on re-circulating ball guides in an oil bath, covered by PVC bellows.
This system does not generate mechanical play which might compromise cutting precision.

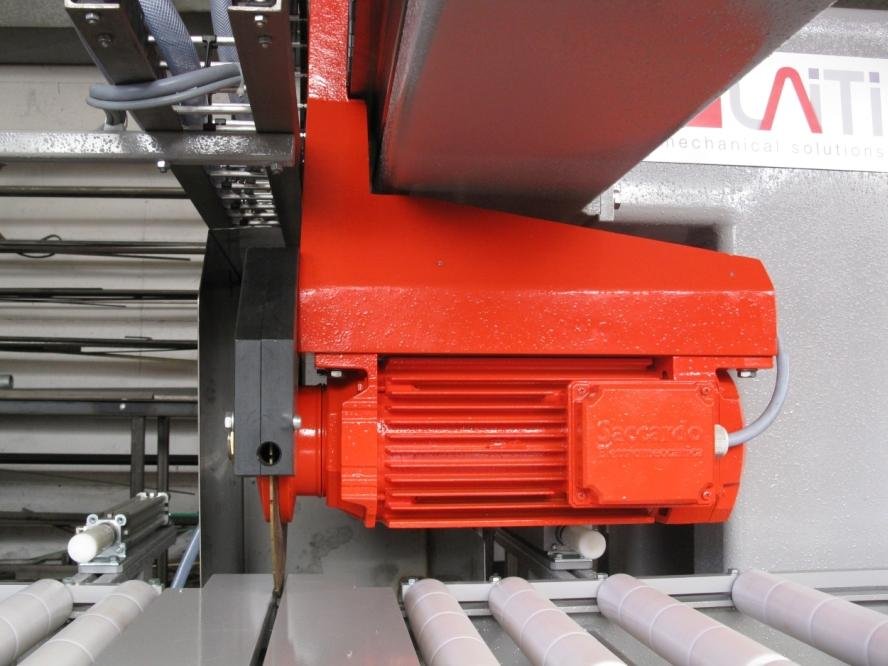

The disc is advanced by inverter controlled gearmotor with pinion/rack system.
The return stroke of the disc can be quickly adjusted when cutting reduced widths to save time.
The disc casing is of plastic to minimize machine noise.
All protections and guards for water are made of stainless steel.
The rollers for the advancement of the material are made with very tough and water resistant acetal resin. The pins are of rectified stainless steel.
During the cutting phase, the material is blocked in position by pneumatic cylinders.
To fully comply with current safety standards, the machine is equipped with two-hand command with electronic control of the simultaneity of disc advancement.
It is possible to produce versions with customized discs, powers and operating measurements.
| CROPPING MACHINE | Mod. IS 600 |
| Max l disk diameter | mm 400 |
| Disks motor power | Kw 9 |
| Max strip thickness | mm 100 |
| Useful cutting width | mm 600 |
| Machine length | mm 3500 |
| Machine width | mm 1600 |
| Max height to the flor | mm 1900 |
| Total installed power | Kw 10 |
| Weight of the machine | Kg 1500 |
