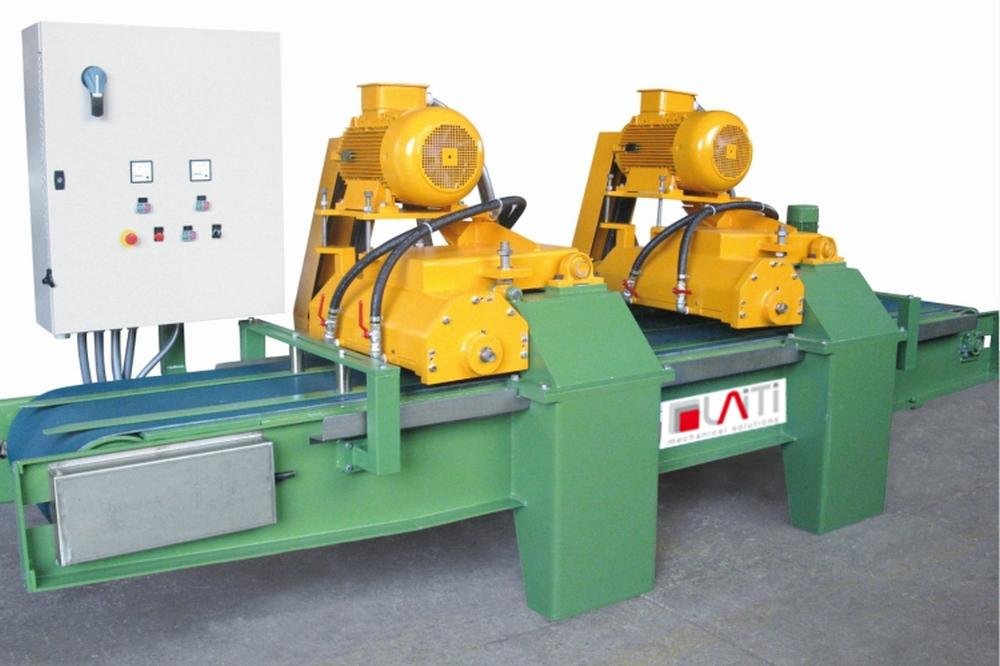

LC 02Calibrating machine
A simple and inexpensive calibrator designed for use independent from processing lines.
It consists of two calibrator units with manually adjustable height.

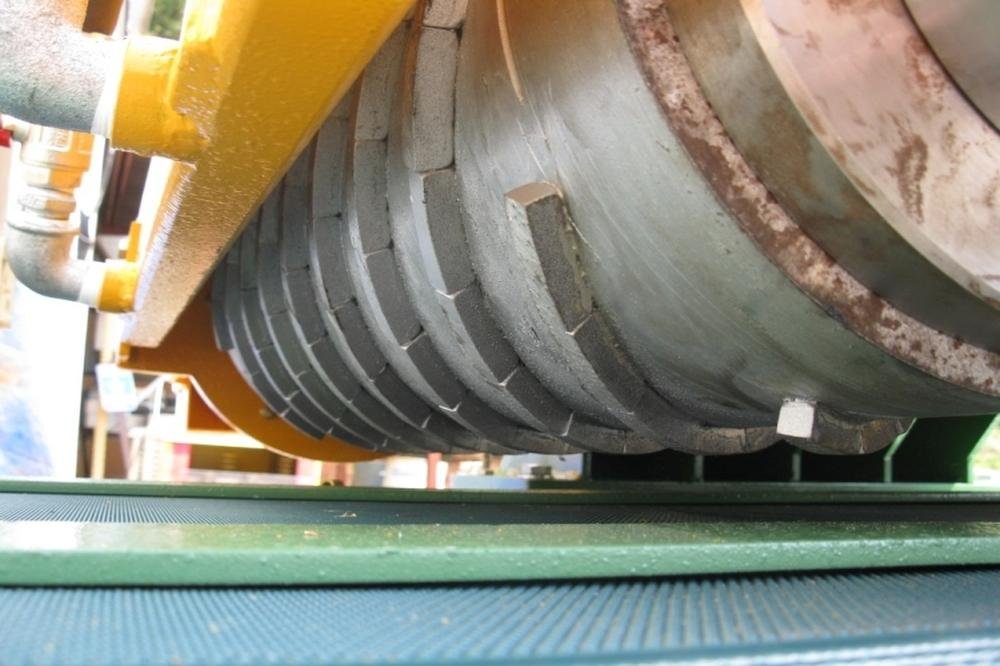

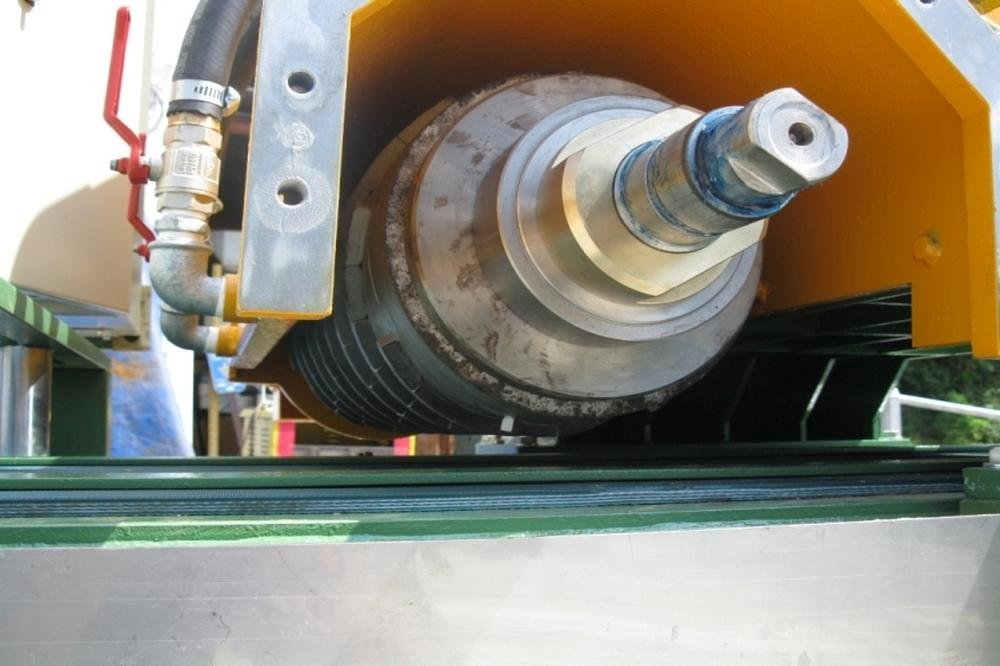

Powerful motors and spindles with large bearings, also frontally supported.
It is possible to produce versions with customized discs, powers and operating measurements.
Datasheet
Datasheet
Description
| CALIBRATING MACHINE | Mod. LC 02 |
| Motor power | Kw 30 |
| Spindles number | N° 2 |
| Max strip thickness | mm 100 |
| Useful cutting width | mm 620 |
| Machine length | mm 4500 |
| Machine width | mm 1800 |
| Max height to the flor | mm 2100 |
| Total installed power | Kw 60 |
| Weight of the machine | Kg 2800 |
A simple and inexpensive calibrator designed for use independent from processing lines.
It consists of two calibrator units with manually adjustable height.
Powerful motors and spindles with large bearings, also frontally supported.
It is possible to produce versions with customized discs, powers and operating measurements.
Request information Calibrating machine - LC 02
