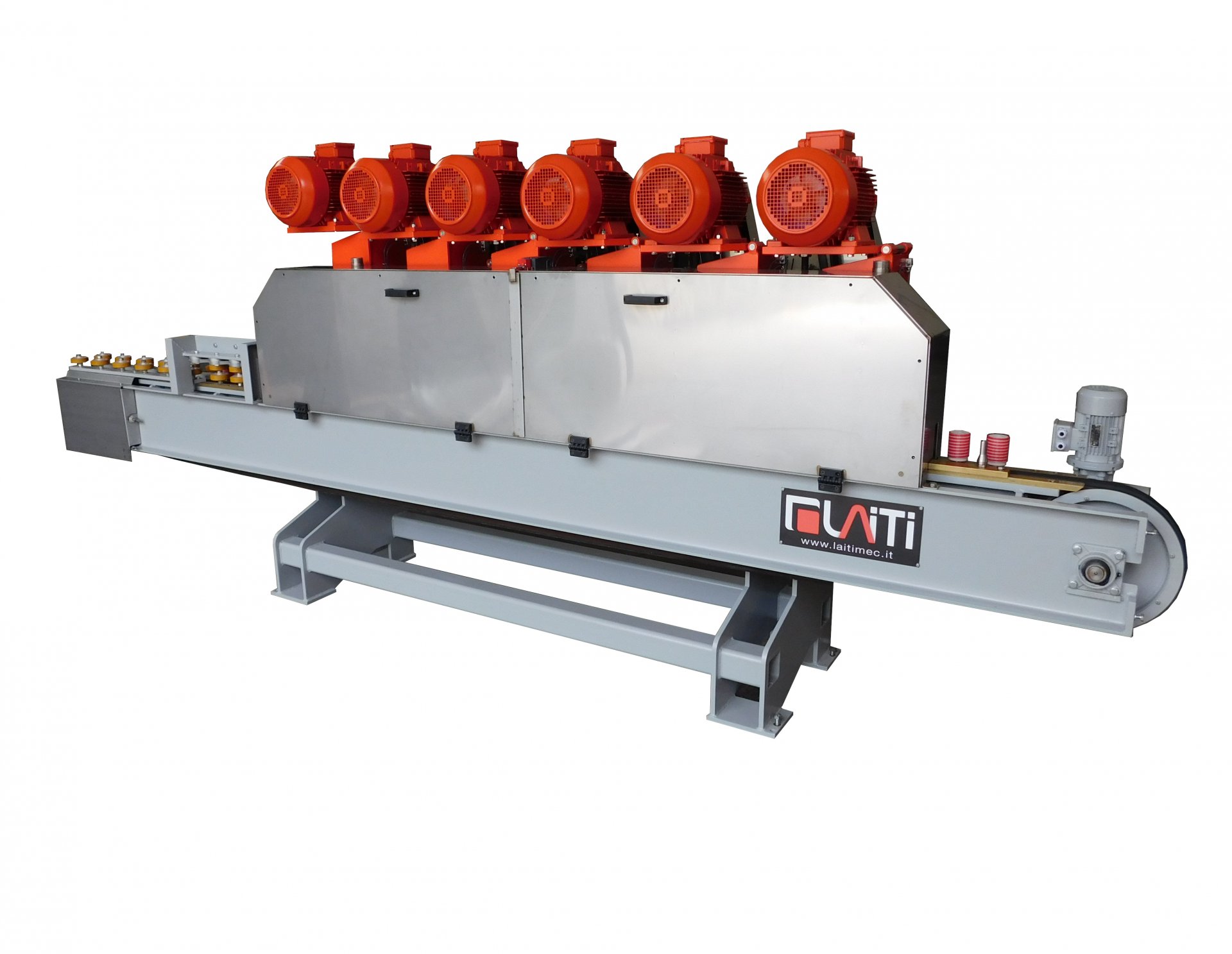

LSZ 100Vertical splitting machine
Machine designed to divide into two parts strips of marble / granite with maximum height 110mm.

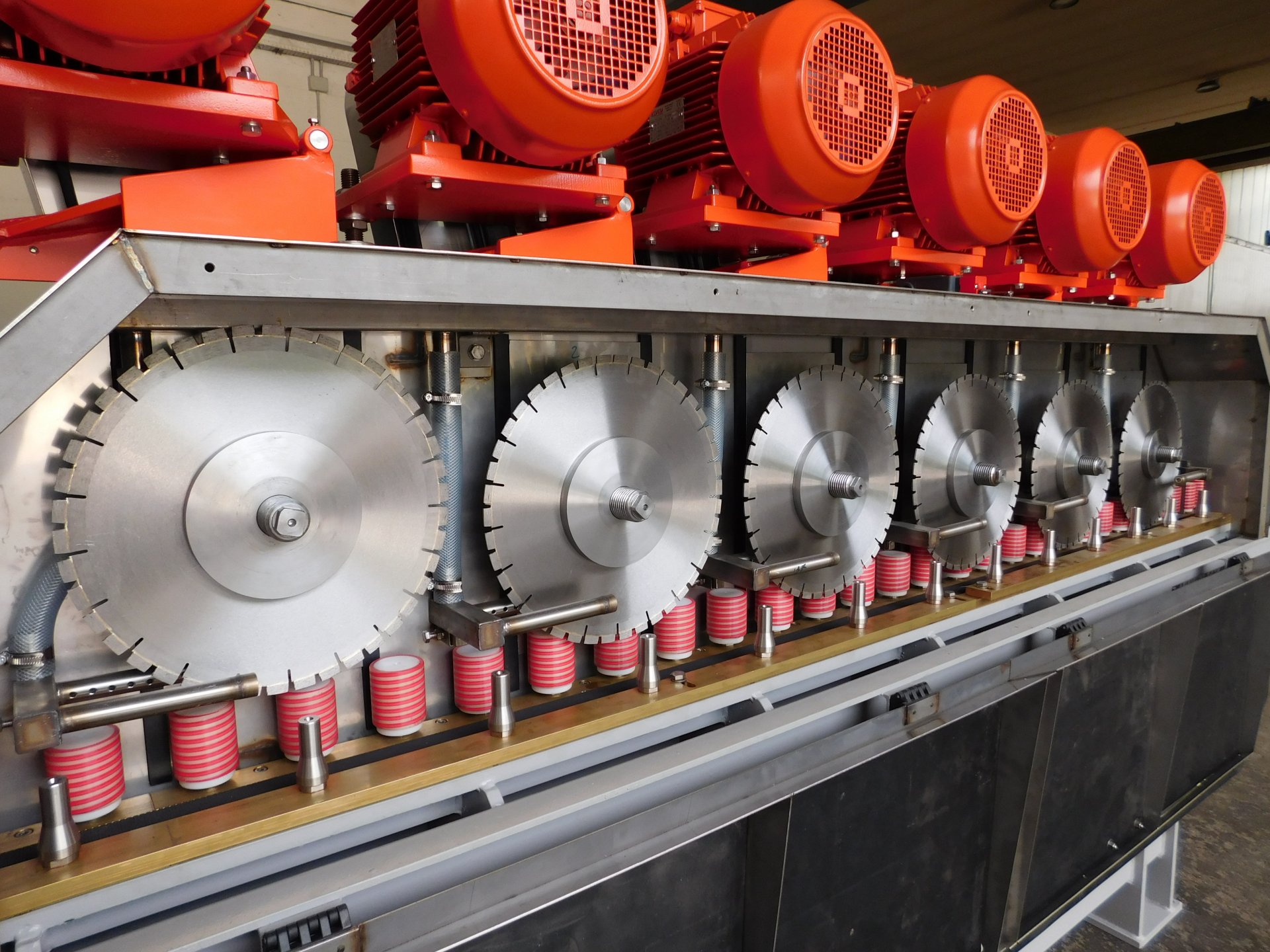

Cutting groups always perfectly in line.
Spindles with belts and independent movement on recirculating ball guides.
Fixed wheels with vulcanized rubber on the inner disc side.
System of adjustable pressers on the front side.
Gearmotor controlled by inverter with adjustment of the cutting speed by potentiometer.
Stainless steel water diffusers.
Stainless steel disc crankcase with front door on hinges, equipped with electro-security lock.
| Mod. LSZ 100 | |
| Disks diameter | mm 350 |
| N° disks | n° 6 |
| Disks motor power | Kw 7,5 |
| Max thickness | mm 40 |
| Max height | mm 110 |
| Machine length | mm 4600 |
| Machine width | mm 800 |
| Max height to the flor | mm 1900 |
| Total installed power | Kw 45 |
| Weight of the machine | Kg 2500 |
